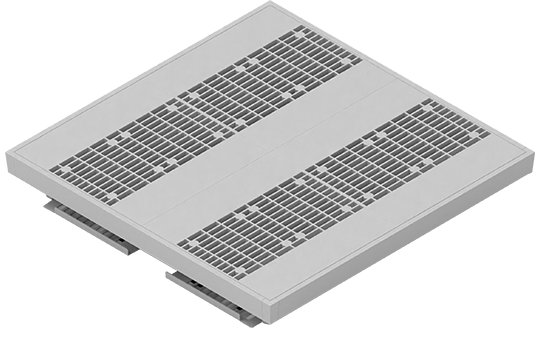

Active Tile
The Active Tile is retrofit product designed to increase the air flow from the false flooring towards the IT racks in Data Center with variable speed fans. This deployment is recommended and necessary to meet higher cold air requirement for high powered density racks.
The air balancing becomes challenging under following situations current scenario:
- High power density racks deployed along with different density racks since different density racks need different CFM to operate.
- Mixing of different air flow racks and devices, as the need is different suction points and direction
- High power density racks installed with same server type from bottom to top of the racks, while the lowest server has higher proximity of air from perforated access floor tile/grill.
Technical Data
| Models | Model | AT7AC | AT9AC | AT14AC | AT7DC | AT9DC | AT14DC |
|---|---|---|---|---|---|---|---|
| Max Airflow @Zero Static Pressure | 720 | 960 CFM | 1440 CFM | 720 | 960 CFM | 1440 CFM | |
| Electrical | Input Voltage | 230 VAC | -48 VDC | ||||
| Avg. Power Rating | 126W | 168W | 252W | 126W | 168W | 252W | |
| Mechanical | Variable Speed Operation | Available | Available | ||||
| Tile Measurement | 600 x 600 mm | ||||||
| Thickness | ~100 mm | ||||||
| Weight | ~10 Kgs | ||||||
| Load Capacity | Composite | Not Available | |||||
| Point Load | 1.5KN | ||||||
