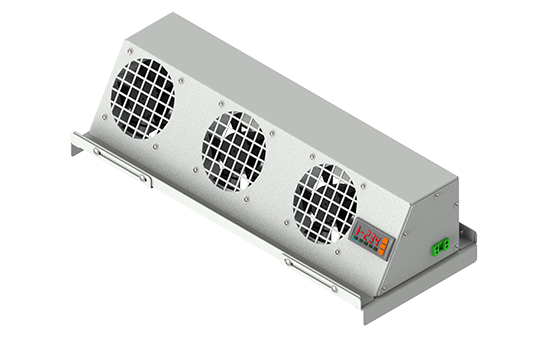

Hot Air Dynamizer
Our Hot Air Dynamizer is designed to enhance the circulation of air flow inside the IT equipment rack by sucking out the hot air towards hot aisle compartment to increase the operational efficiency and boost the cooling capacity of IT servers loaded inside the racks. This system can easily be integrated above server rack with adjustable tray clamp design.
We offer both fix speed and variable speed air circulation options as per customer need. System is capable to sense and operate independently
Features:
- Simple to install and swap
- A hot pocket ejector
- Air dynamics shift at 70/90 degrees
- Fan and control card that runs on 48Vdc
Technical Data
| Models | Model | HD7AC | HD9AC | HD7DC | HD9DC |
|---|---|---|---|---|---|
| Max Airflow @Zero Static Pressure | 720 | 960 CFM | 720 | 960 CFM | |
| Electrical | Input Voltage | 230 VAC | -48 VDC | ||
| Avg. Power Rating | 126W | 168W | 126W | 168W | |
| Mechanical | Variable Speed Operation | Available | Available | ||
| PFC Alarm (Optional) | High temperature and fan fail | ||||
| Mounting Option | Rack top mount with adjustable brackets | ||||
| Material | GI powder coated | ||||
