Telecom Enclosure

IP65 Enclosures – Aircon Cooling

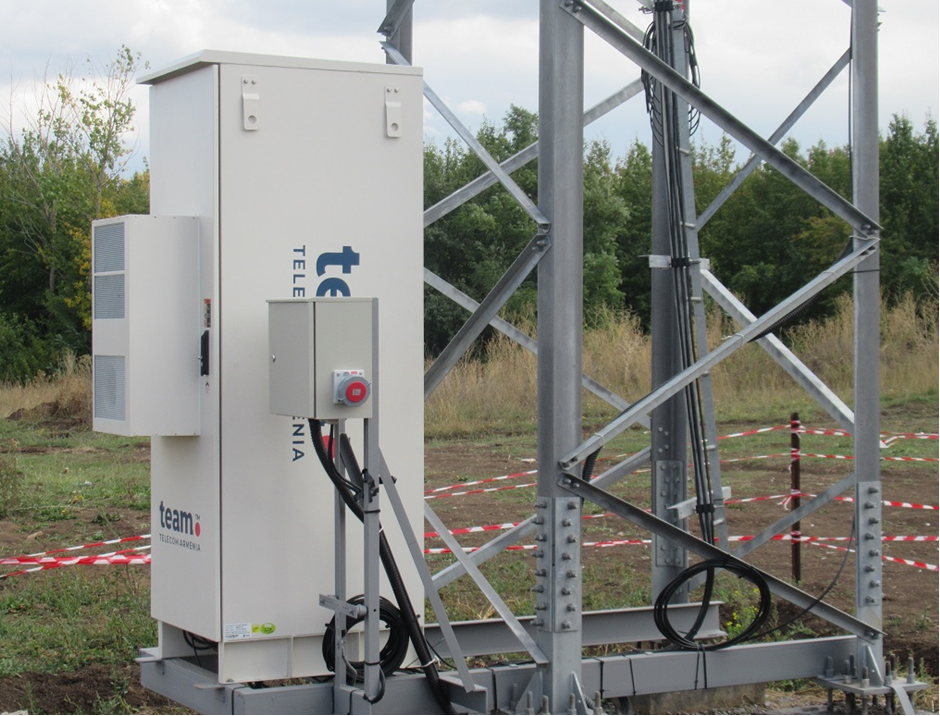

The IP55 Air Conditioning Cooling Enclosure is engineered to deliver exceptional thermal management for critical equipment, ensuring optimal performance even in the harshest environmental conditions. Designed with precision and reliability in mind, the IP55 cooling solution is ideal for applications that demand consistent and efficient cooling, such as telecom, industrial, and outdoor IT infrastructure.

Standard Features:
  • High-Efficiency Rotary Compressor: Delivers exceptional cooling with minimal energy consumption.
  • R134a Refrigerant: Optimized for high ambient temperature operation, ensuring effective cooling in extreme conditions.
  • GR487 Compliant: Meets stringent standards for outdoor telecom equipment, guaranteeing durability and reliability.
  • Low Ambient Cooling/Head Pressure Control: Maintains optimal cooling performance across varying temperature ranges.
  • RoHS Compliant: Designed to comply with environmental regulations, free from hazardous substances.
  • Corrosion-Resistant Cabinet: Provides long-lasting protection against environmental degradation.
  • Stainless Steel Exterior Hardware: Enhances durability and resistance to corrosion, especially in harsh environments.
  • Sloped Top: Prevents water accumulation, reducing the risk of leaks and prolonging the life of the enclosure.
  • Temperature Control Board: Features LED status lights, adjustable temperature settings, alarms, self-test functions, and a remote temperature sensor for precise environmental control.
  • Compressor and Fan Modulation: Provides efficient and responsive cooling management, adapting to varying loads.
Optional Features:
  • Evaporator Side Heater Element: Available in 500W or 750W, ensuring effective temperature control in colder environments.
  • Condenser Side Fan Intake Filter: Adds an extra layer of protection against contaminants.
  • Custom Paint Finishes: Allows customization of the enclosure to match specific aesthetic or branding requirements.
  • Stainless Steel Enclosure: Offers a UL Type 4X rating for superior protection in highly corrosive environments.
  • Compressor Crank Case Heater: Ensures reliable compressor performance in low temperatures.(optional)
  • Ethernet Controller with Digital Display: Provides advanced monitoring and control capabilities for enhanced performance management.
Applications:
  • Radio Base Stations
  • Telecom Shelters and Indoor/Outdoor OSP Cabinets
  • Network Switching Rooms and Computer Rooms
  • Automation Control Cabinets and Process Control Centers
  • Digital Advertisement Boards and Kiosk Display Systems
  • Power Supply Cabinets, Battery Cabinets, and Rectifier Cabinets
Technical Data:
Environmental Protection Class IP55
Operating Temperature -5°C to +48°C
Storage Temperature -25°C to +60°C
Earthquake Zone 4 Compliant
Max Noise 65 dB(A)
Mechanical Construction GI Steel / SS / Aluminium with single-walled and insulation or Dual skin sandwiched with insulation
Surface Powder-coated RAL as per customer preference
Internal Space 10U to 40U
Cable Entry Via Cable Glands/ multi-hole system
Weight 25 Kg
Accessories mounting Rails, Light, Lightning protection, 200mm Plinth, Grounding Bus Bar, etc
Temperature Cooling System Air-conditioner based Cooling
Refrigerant R134a (DC Based) / R410a (AC Based)
Cooling Capacity 300 W to 4000 W
Input voltage Option 1y DC –48V±20% (optional)
Input voltage option 2 AC 220V±15% 50/60Hz (optional)
Sensors Sensors Included Door Alarm Contact, Temperature Sensor, Fan Failure, CCTV(Optional)
