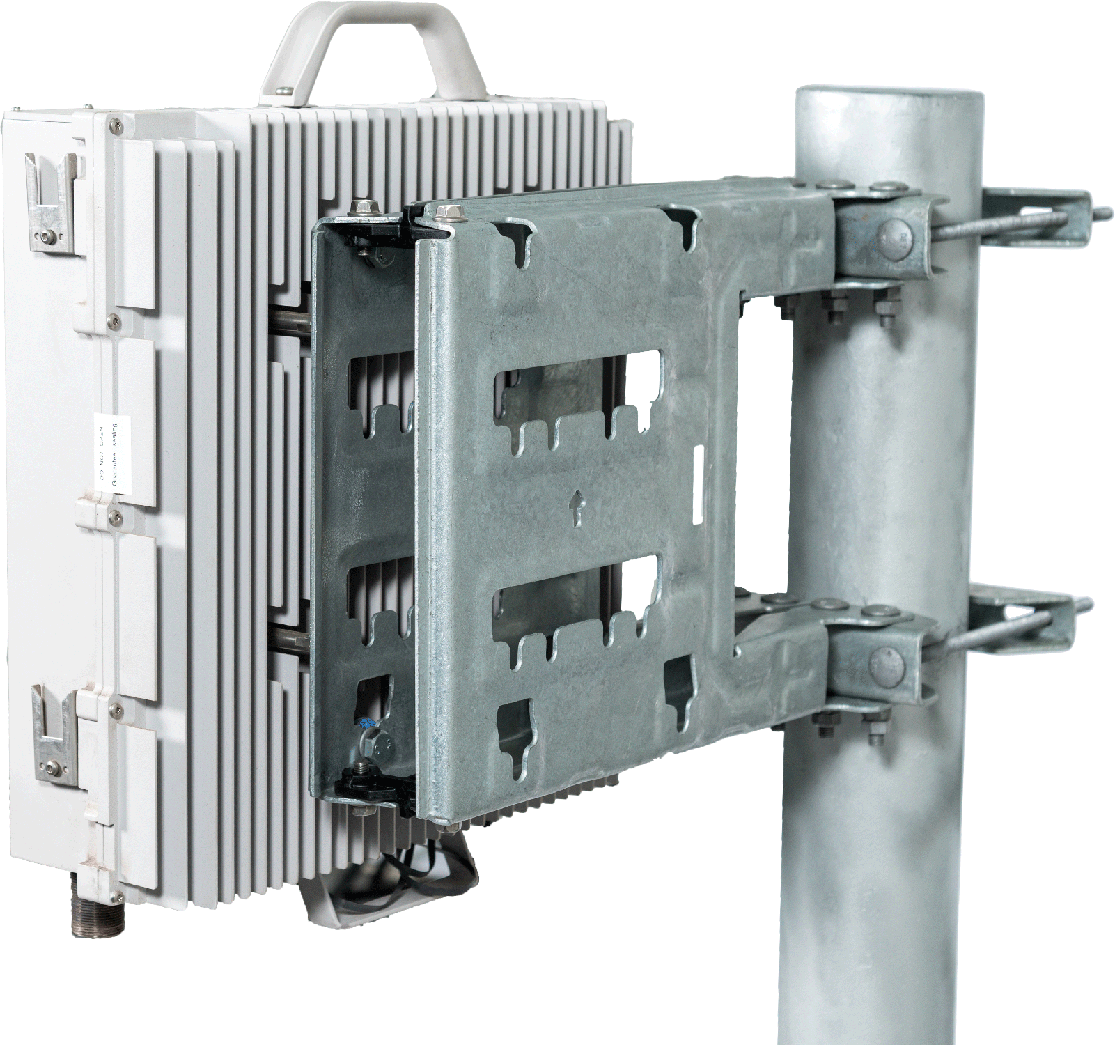

Universal BTB Bracket is a Low PIM radio mount solution, designed for installation of two radios back to back on a single bracket.
Flexibility
Bracket is designed for installation of radio system, which will be mounted on pole, mast, tower leg or square tube. It supports all radio
system with centre-to-centre distance of 146mm x 264.5mm (old generation RRU) or 30mm x 110mm or 80mm x 110mm or 110mm X 110mm.
Easy To Assemble
Handling and installation of the parts is very easy as parts are easy to assemble and easy to install radio system.
| Mounting Span | Tube | 90° Angle | Square Profile | |
|---|---|---|---|---|
| Ø55 to Ø120mm | 60x60mm to 80x80mm | 50x50mm to 80x80mm | ||
| Design Consideration | Maximum Wind Speed | Maximum Equipment Weight | Recommended Torque | |
| 67m/s (240 KMPH) | Upto 56kg each side | 10.0 Nm | ||
| Mechanical Specifications | Material | Finish of Material | Fasteners | |
| High Tensile Steel | Pre-coated | Grade 8.8, Hot Dip, A4 | ||
| Package Dimensions | Length | Width | Height | Weight |
| 180mm 18.89in. |
360mm 14.17in. |
80mm 3.14in |
10.40KG 22.92lbs |
|
