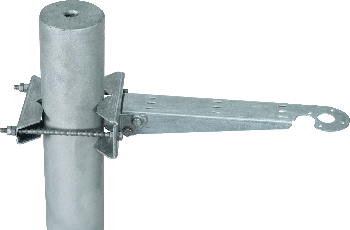

SRK’s GPS Mounting bracket is designed for installation of GPS, which can be mounted on pole, mast, tower leg etc.
Flexibility
GPS Mounting bracket supports- Pole mount and wall mount. Pole mount can be installed on a wide range of vertical structure such as pipes, angles, and square tubes. Wall mount can be directly drilled and fitted in wall using fasteners. It supports 10° tilt. The GPS Mount will fit the Rosenberger GPS 36-N-SC, Comba GNSS – 58C34ND and any other GPS unit with same hole pattern.
Easy to Assemble
GPS Mounting bracket is designed in such a way that makes its assembly very easy. It can be preassembled on the ground and taken on the mounting point on tower for final tightening
Mounting Span | Tube | 90° Angle | Square Profile | |
---|---|---|---|---|
Ø55 to Ø120mm | 60x60mm to 80x80mm | 50x50mm to 80x80mm | ||
Design Consideration | Maximum Wind Speed | Maximum Equipment Weight | ||
67m/s (240 KMPH) | Upto 50kg | |||
Mechanical Specifications | Material | Finish of Material | Fasteners | |
High Tensile Steel | Pre-Coated | Grade 8.8, Hot Dip Galvanized, A4 |
To know for the exact product please connect us contact@flexsol.in
