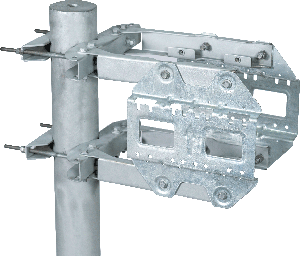

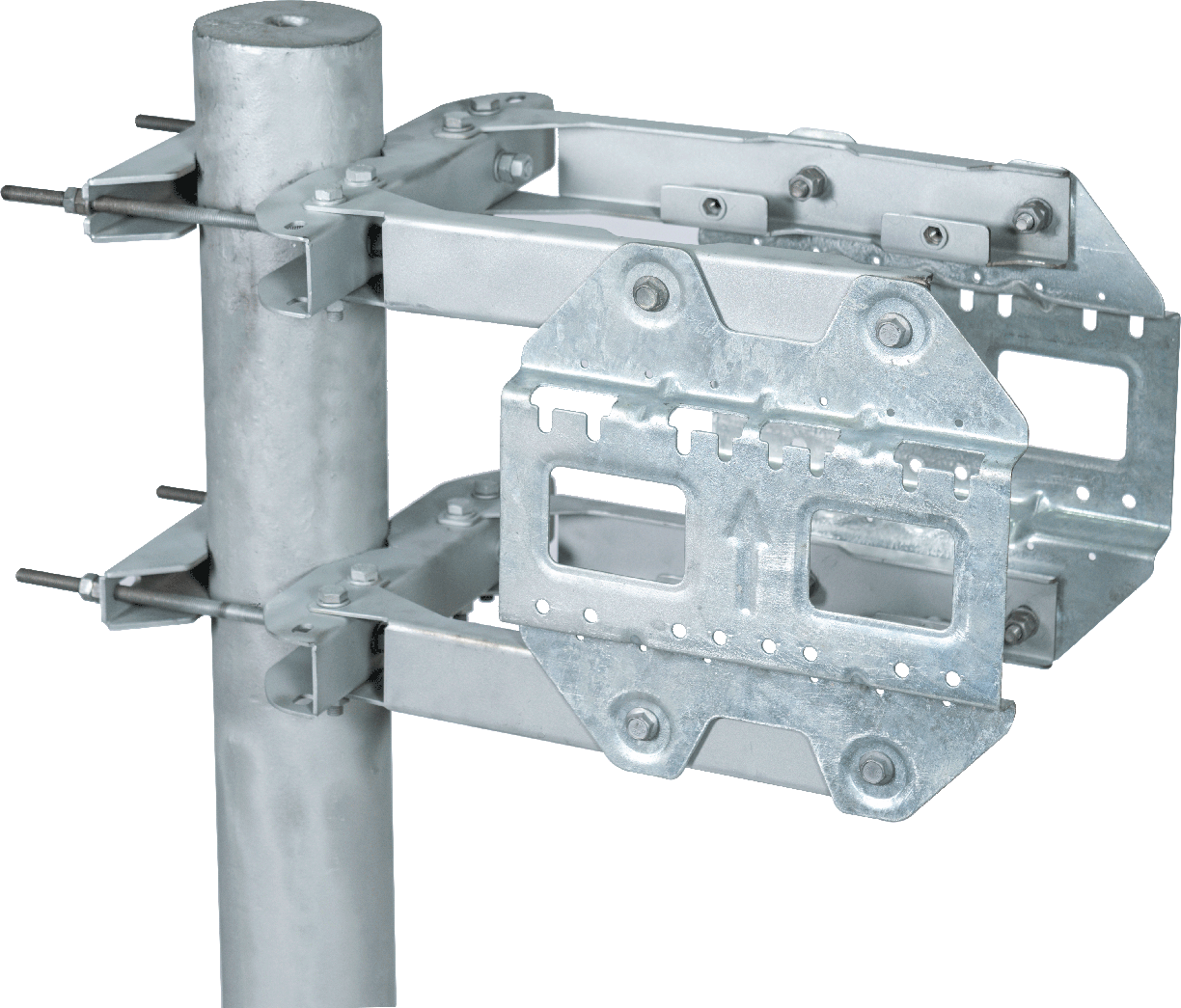

Radio System Adapter Plate is designed for installation of an radio system on old generation RRU type brackets. It can be used for all PL-5 type brackets for installation of radio system.
Flexibility
Radio System Adapter Plate supports all PL-5 type brackets for installation of all RRUs/equipment's with hole pattern of CC 30mm (1.2inch) or CC 80mm (3.1inch) with weight up to 40kg.
Easy To Assemble
Handling and installation of the parts of assembly as parts are light weighted and are not complicated. Additional Provision It can also host PSU unit
on one side of Adapter plate
| Mounting Span | All PL- 5 Type Bracket | |||
|---|---|---|---|---|
| Design Consideration | Maximum Wind Speed | Maximum Equipment Weight | ||
| 67m/s (240 KMPH) | Upto 40kg | |||
| Mechanical Specifications | Material | Finish of Material | Fasteners | |
| High Tensile Steel | HDG | Grade 8.8, HDG/A4 | ||
| Package Dimensions | Length | Width | Height | Weight |
| 325mm 12.79in |
310mm 12.20in. |
70mm 2.75in. |
2.40KG 4.40lbs |
|
