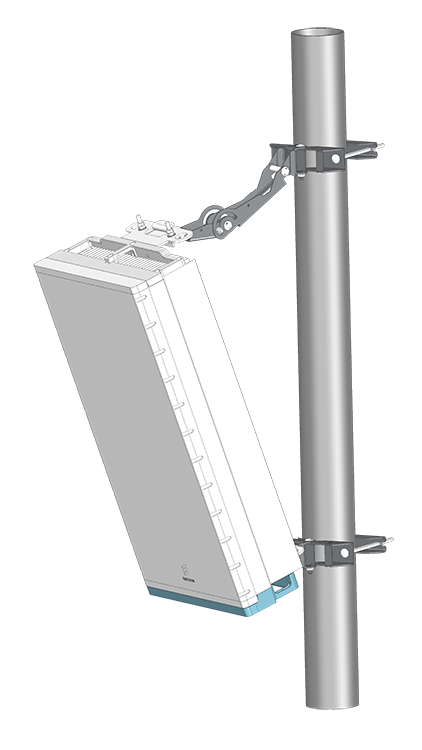

AAS Medium AIR/mm Wave Bracket is designed for Antenna Air System with provision of horizontal tilt +30° and simultaneously 20° vertical tilt upward or downward
Flexibility
Bracket is designed for installation of AAS, which will be mounted on pole, mast, tower leg, wall etc. It supports all Medium AAS installation with centre-to-centre distance of 110mm and weight up to 70kg. It provides the option for tilting horizontally +30° and simultaneously vertically from 0° to 20°
upward or downward.
Easy To Assemble
Handling and installation of the parts is very easy as it consists of two preassemble sets. There is locking arrangement also for tilting arms for parking
AAS temporarily before tightening.
Mounting Span | Tube | 90° Angle | Square Profile | |
---|---|---|---|---|
Ø76 to Ø120mm Ø2.99 to Ø4.72inch |
50x50mm to 80x80mm 1.96x1.96inch to 3.14x3.14inch |
50x50mm to 80x80mm 1.96x1.96inch to 3.14x3.14inch |
||
Design Consideration | Maximum Wind Speed | Maximum Equipment Weight | ||
67m/s (240 KMPH) | Upto 70kg | |||
Mechanical Specifications | Material | Finish of Material | Fasteners | |
High Tensile Steel | HDG | Grade 8.8, HDG/A4 | ||
Package Dimensions | Length | Width | Height | Weight |
530mm 20.86in. |
240mm 8.07in. |
130mm 5.11in. |
8.50KG 18.73lbs |
