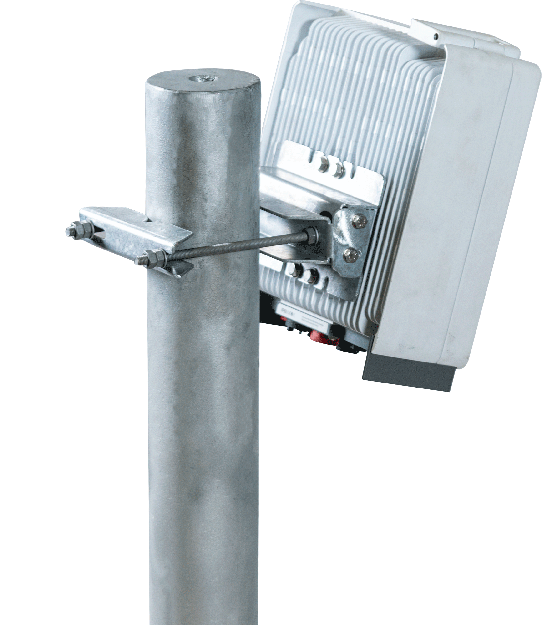

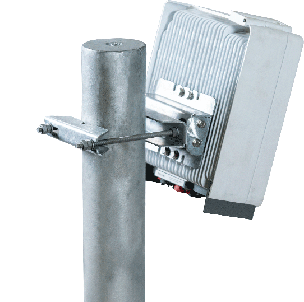

Single Radio System Mount For 15° Tilt support kit is a Low PIM radio mount solution designed for installation of radio system, which will be mounted on pole, mast, tower leg etc.
Flexibility
Single Radio System Mount For 15° Tilt kit supports Pole mount and wall mount. Pole mount can be installed on a wide range of vertical structure such
as pipes, angles and square tubes. Wall mount can be directly drilled and fitted in wall using fasteners.
Easy To Assemble
Handling and installation of the parts of assembly as parts are light weighted and are not complicated.
| Mounting Span | Tube | 90° Angle | Square Profile | |
|---|---|---|---|---|
| Ø55 to Ø120mm Ø2.16 to Ø4.72inch |
60x60mm to 80x80mm 2.36x2.36inch to 3.14x3.14inch |
50x50mm to 80x80mm 1.96x1.96inch to 3.14x3.14inch |
||
| Design Consideration | Maximum Wind Speed | Maximum Equipment Weight | Recommended Torque | |
| 67m/s (240 KMPH) | Upto 40kg each side | 10.0 Nm | ||
| Mechanical Specifications | Material | Finish of Material | Fasteners | |
| High Tensile Steel | Pre-coated | Grade 8.8, Hot Dip, A4 | ||
| Package Dimensions | Length | Width | Height | Weight |
| 230mm 9.05in. |
130mm 5.11in |
105mm 4.13in. |
2.40KG 5.29lbs |
|
