Single Radio Mount
Single Radio Mount is a Low PIM radio mount designed for installation of one radio system on pole, mast, tower leg etc.
FlexibilityThis bracket can be mounted on either circular , angular or square profile members as well as on wall. The hole pattern for equipment is CC 30mm (1.2in) or CC 80mm (3.1in) or CC 110mm (4.3in). Wall mount can be directly drilled and fitted in wall using fasteners.

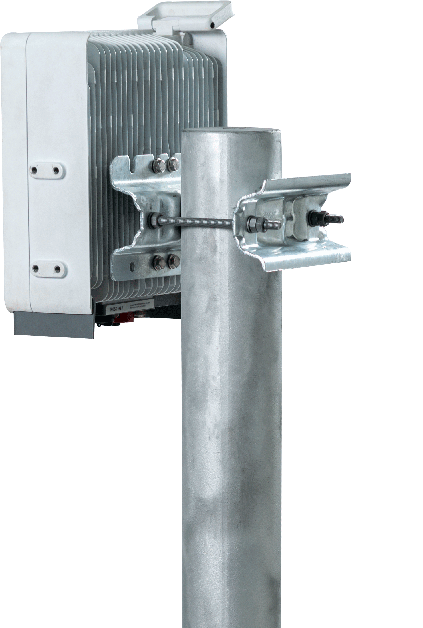

Mounting Of RadioOur bracket allows to mount the radio on either direction, Portrait mode or in Bookshelf mode
Technical Data:
| Mounting Span | Tube : Ø55 to Ø120mm Angle :60x60mm to 80x80mm Square Profile : 60x60mm to 80x80mm |
|---|---|
| Product Dimensions | Length/Width /Height/Weight |
| 210mm/200mm/68mm/2.46KG |
